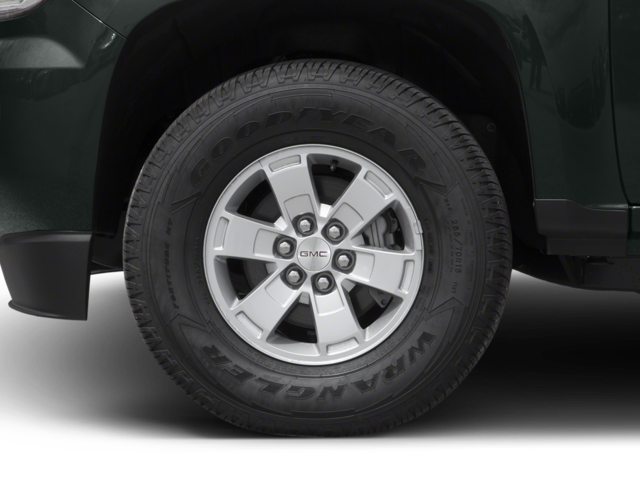

• Wheels, 16" x 7" (40.6 cm x 17.8 cm) Ultra Silver Metallic cast aluminum
• Tires, P265/70R16 all-season, blackwall
• Pickup box (Deleted when (ZW9) pickup box delete is ordered.)
• Tire, spare P265/70R16 all-season, blackwall (Included and only available with (S1K) 16" x 7" (40.6 cm x 17.8 cm) spare, steel wheel.)
• Bumper, rear Chrome (Deleted when (ZW9) pickup box delete is ordered.)
• CornerStep, rear bumper (Deleted when (ZW9) pickup box delete is ordered.)
• Moldings, Black beltline

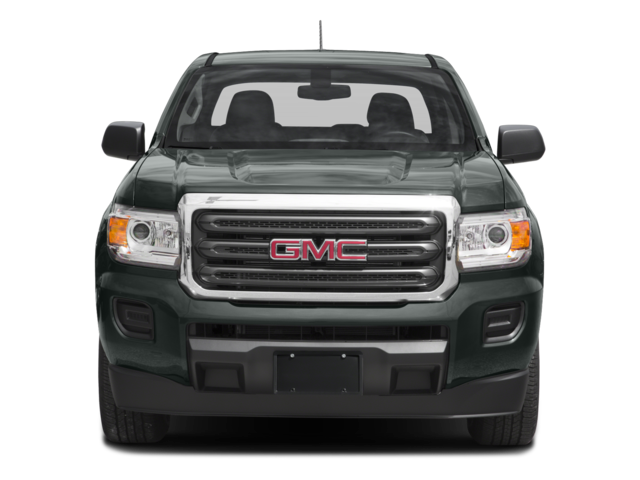

• Headlamps, projector-type with LED signature
• Cargo box light, back of Cab
• Mirrors, outside manual-folding, Black
• Glass, windshield shade band
• Door handles, Black

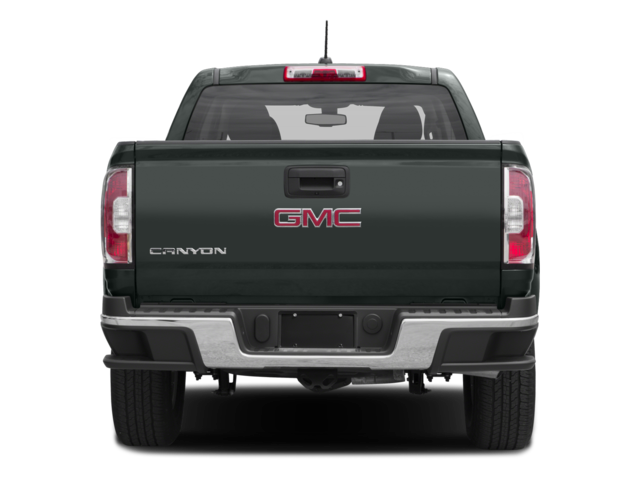

• Tailgate, locking (Deleted when (ZW9) pickup box delete is ordered.)
• Tailgate handle, Black (Deleted when (ZW9) pickup box delete is ordered.)

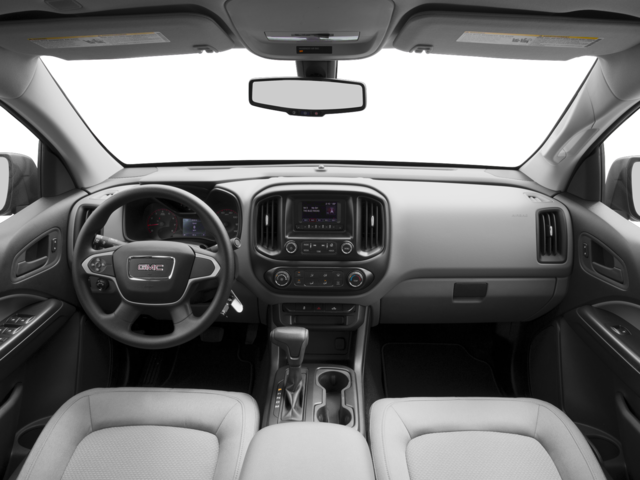

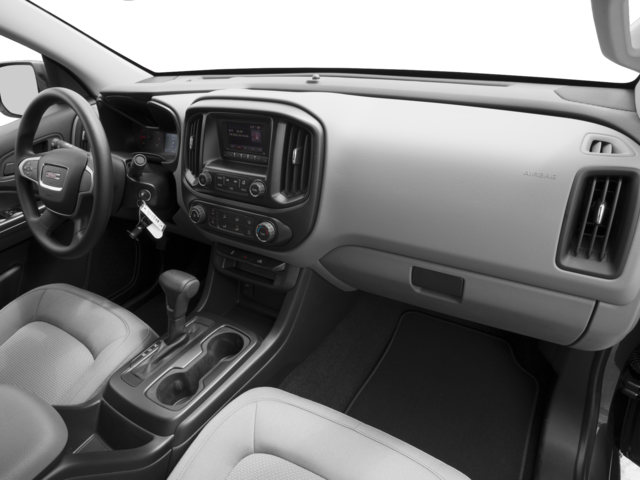

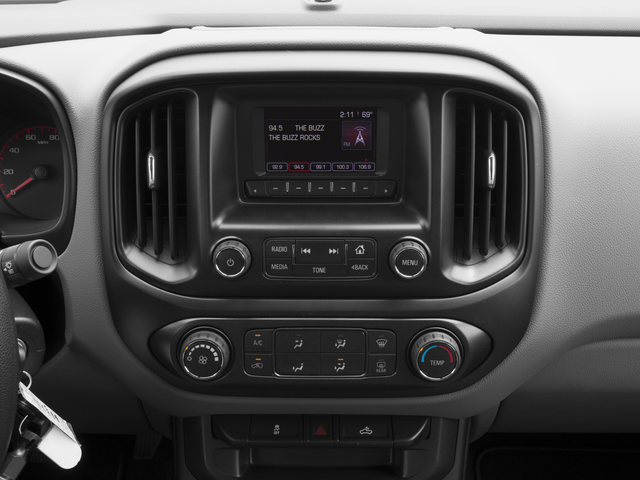

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB port and auxiliary jack
• Audio system feature, 6-speaker system
• Audio system feature, USB port, located on instrument panel

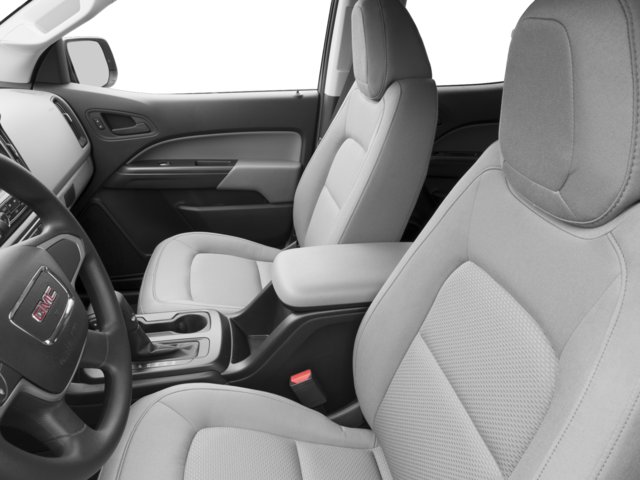

• Seats, front bucket
• Seat adjuster, driver 4-way power with manual recline
• Seat adjuster, passenger 2-way manual, fore/aft with manual recline

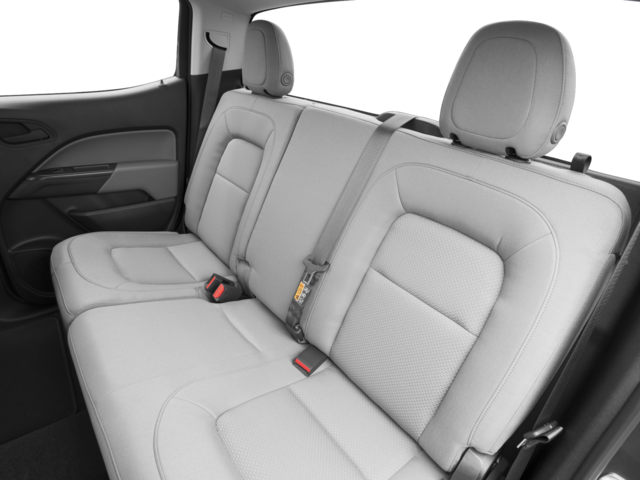

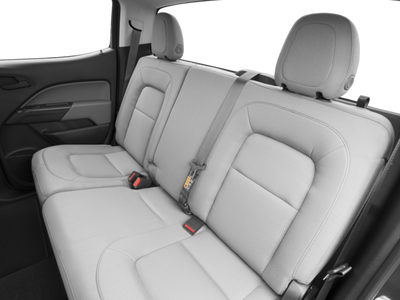

• Seat, rear folding bench (Crew Cab models only.)

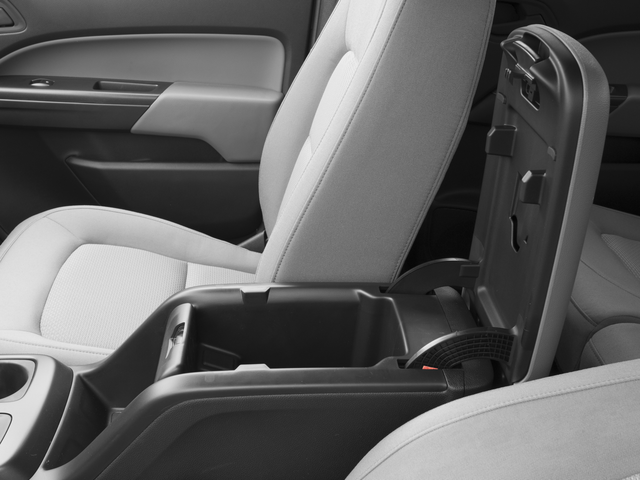

• Console, floor, front compartment, custom
• Floor covering, color-keyed carpeting
• Floor mats, carpeted front (Deleted when (B38) full-length Black vinyl floor covering is ordered. Requires (B30) color-keyed carpeting floor covering.)
• Floor mats, carpeted rear (Requires (B30) color-keyed carpeting floor covering.)

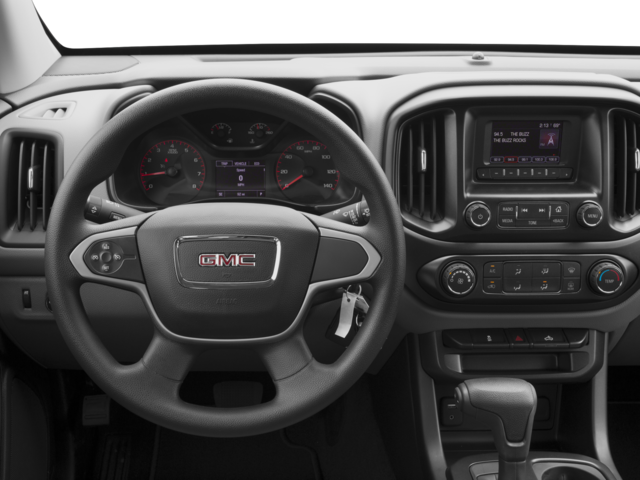

• Steering wheel, urethane
• Steering column, tilt, manual
• Display, driver instrument information enhanced, one color
• Door locks, power
• Windows, power with driver Express-Up and Down
• Theft-deterrent system, immobilization
• Air conditioning, single-zone manual climate control
• Handles, door release, front and rear, Jet Black
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger with passenger covered vanity mirror
• Lighting, interior, center dome

• StabiliTrak, stability control system
• Traction control, electronic
• Daytime Running Lamps
• Air bags, dual-stage frontal and side-impact, driver and front passenger and head-curtain for all outboard seating positions with Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera (Deleted when (ZW9) pickup box delete is ordered.)
• Tire Pressure Monitor System

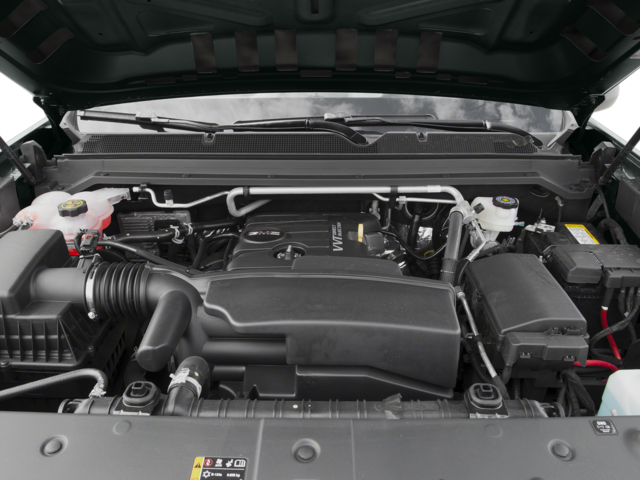

ENGINE, 3.6L SIDI DOHC V6 VVT

• (305 hp [229 kW] @ 6800 rpm
• 269 lb-ft of torque [365 N-m] @ 4000 rpm) (STD)

• Vehicle
• Number of Passenger Doors: 4
• Mileage
• Fuel Economy Est-Combined (MPG): 21
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 26
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 15.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3200
• Gross Axle Wt Rating - Rear (lbs): 3500
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 5800
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 700
• Maximum Trailering Capacity (lbs): 7000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 3.42
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.2 x 1.0
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 0.7
• Tires
• Front Tire Order Code: QJJ
• Rear Tire Order Code: QJJ
• Spare Tire Order Code: ZJJ
• Front Tire Size: P265/70R16
• Rear Tire Size: P265/70R16
• Spare Tire Size: P265/70R16
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 44.6
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Fully-boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 21
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 140.50
• Length, Overall w/o rear bumper (in): 224.6
• Width, Max w/o mirrors (in): 74.30
• Height, Overall (in): 70.60
• Overhang, Front (in): 36.90
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 36.13
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.10
• Ground Clearance, Rear (in): 8.10

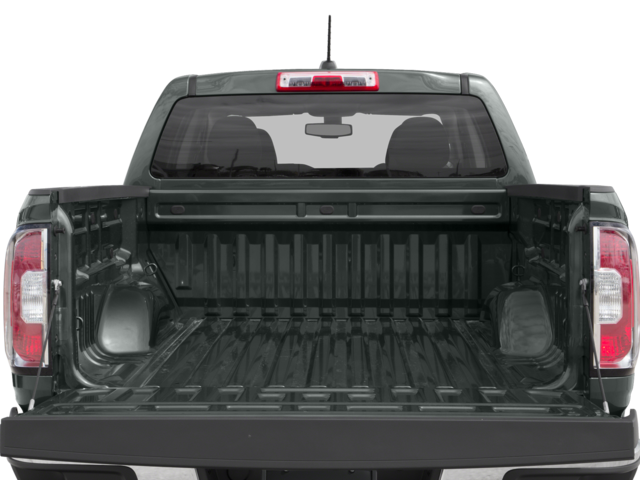

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 74.00
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 57.80
• Cargo Box Width @ Wheelhousings (in): 44.40
• Cargo Box (Area) Height (in): - TBD -
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 49.90
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.40
• Front Leg Room (in): 45.00
• Front Shoulder Room (in): 57.50
• Front Hip Room (in): 55.00
• Second Head Room (in): 38.30
• Second Leg Room (in): 35.80
• Second Shoulder Room (in): 56.20
• Second Hip Room (in): 53.30
• Summary

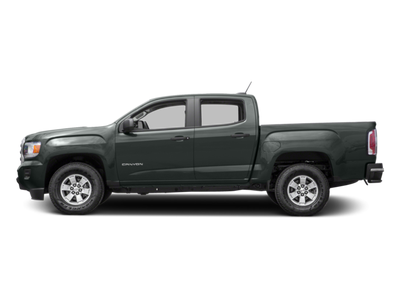

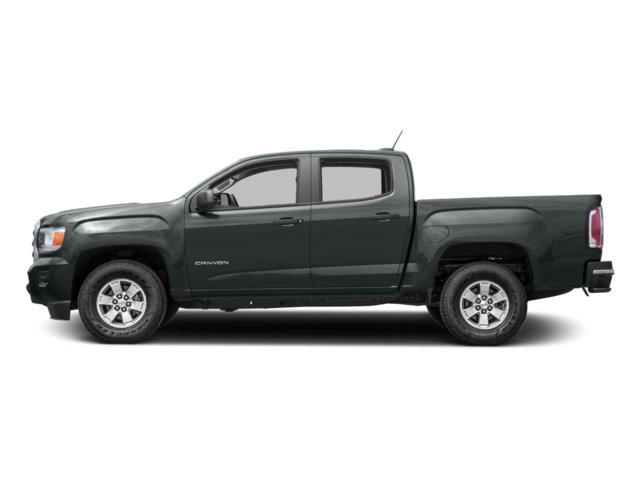

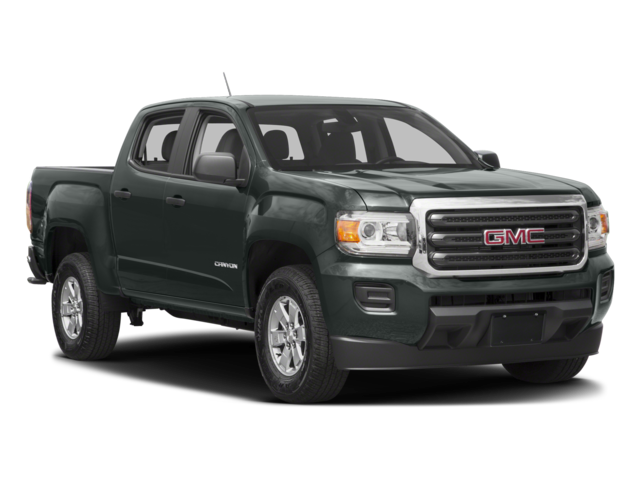

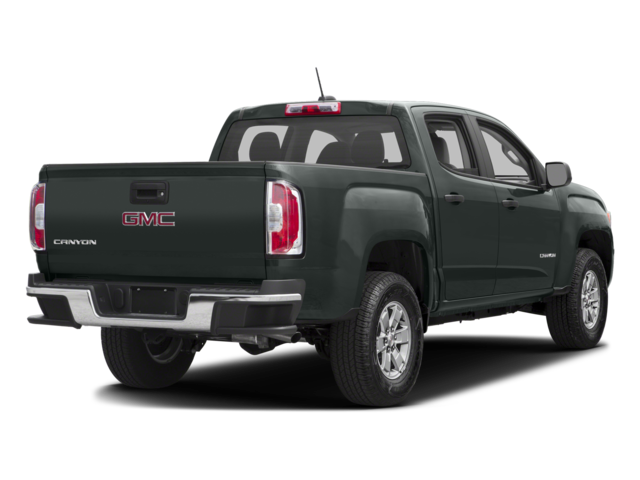

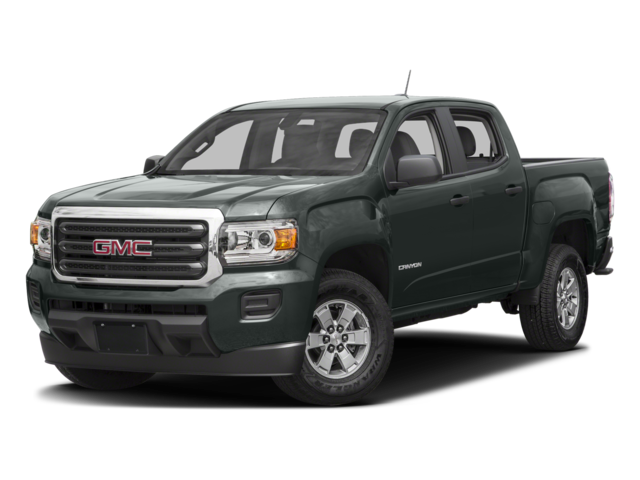

• Vehicle Name: GMC Canyon
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.4
